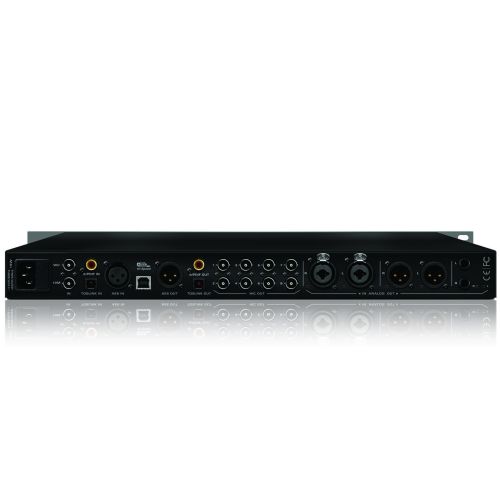

Antelope Audio Pure 2 - Mastering AD/DA Converter & USB Audio Interface

$2,595.00
In stock
SKU Pure 2

PURE 2

Mastering AD/DA Converter & Clock



DIGITAL CLARITY, ANALOG WARMTH

Pure2 is a high-end mastering converter, powered by Antelope Audio’s legendary clocking and pristine analog circuitry

Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.



Pure 2 Features:

  • A/D converter with optimized overload handling

  • D/A converter with dual-DAC architecture

  • High-end headphone amp with dedicated D/A converter

  • Relay-based analog volume control for accurate monitoring

  • Master clock with 4th-generation Antelope AFC jitter management

  • Connections for S/PDIF, TOSlink, AES, and USB

  • Intuitive software control panel for Mac/Windows



FLEXIBLE CONTROL

Access all Pure2 features via Mac & PC app or through the front-panel controls

All Pure2 features are available in an intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.



EASY LIFE

We know the engineer’s life is not a glamorous one. So we tried to make it easier.

You can set up Pure2 in a couple of minutes. All you actually need is one USB cable (provided in the box) and a laptop of your choosing (Win 7.1 or higher / Mac OSx 10.9 or higher) and you can start capturing stereo audio at 192 kHz.

After setting it up, just download the Control Panel, a few clicks and you’re set.



SPECIFICATIONS:

Analog Inputs

2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu



Digital Inputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated

1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated

1 x TOSLINK on optical fiber: up to 96kHz



Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz



Analog Outputs

1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu

1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)

1 x 1/4 TRS Front Headphones 20dBu



Digital Outputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated

1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated

1 x TOSLINK on optical fiber: up to 96kHz



Word Clock Outputs

8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz



USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,

4 channels I/O playback/record, Type B



External Reference Clock

1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz



A/D Converter

Dynamic Range: 122dB

THD+N: -105dB



D/A Converters

Main DAC Dynamic Range 127dB; THD+N -107dB

Monitor DAC Dynamic Range 120dB; THD+N -103dB

Headphones DAC Dynamic Range 120dB; THD+N -100dB



Clock Specifications



Clock Aging



Clock Calibration



Atomic Clock Input

10MHz @ 1Vpp, BNC



Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192



Operating Temperature

0-50°C, 32-122°F



Weight

3 kg, 6.6 lb approx.



Dimensions (Approx)

483mm(W) x 44mm(H) x 220mm (D)

19”(W) x 1.75”(H) x 8.66”(D)



Power Supply

~110VAC 60Hz/ ~220VAC 50Hz selectable



Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC



Fuses

2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay)



System Requirements

Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth: 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

More Information
ConditionBrand New
★★★★★
★★★★★
