Innovation

• BSS OMNIDRIVEHD™ DSP processing with IIR filters and linear phase FIR filters

• Covered by five patents

• Fan has true tachometer feedback for fan fault protection and precise control over thermal performance,so the amp runs longer and harder than the competition

• Includes SLM (Sweep Load Monitoring) with system-level diagnostics

Performance

• Ultra smooth processing by onboard high-definition BSS OMNIDRIVEHD DSP with 24-bit,192kHz Cirrus Logic SHARC A/D and D/A converters

• LevelMAX™ peak voltage and RMS power limiters communicate with each other,resulting in smooth and accurate response,better sound

• True Ethernet backbone – fast,reliable and scalable

• High common-mode rejection eliminates hum and RFI on input cables

• 6th-generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw

Versatility

• Global Power Supply; universal AC input accepts100-240VAC,50/60Hz (±15%)

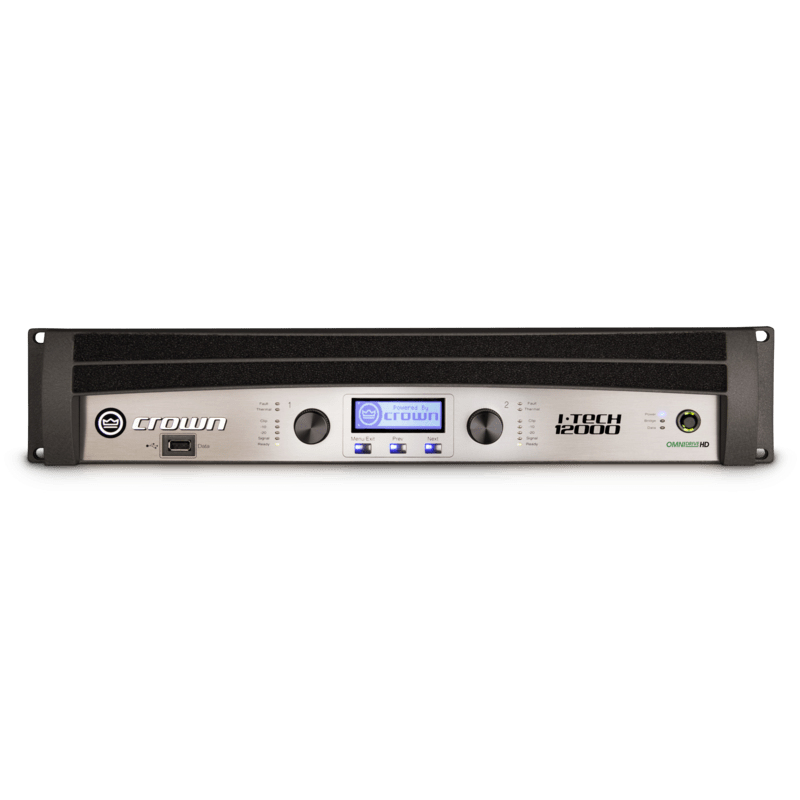

• Front-panel USB connector transfers presets to/from a USB drive to the amp’s DSP

• New software interface based on customer feedback manages presets,provides easier system-level changes,and includes a configuration wizard

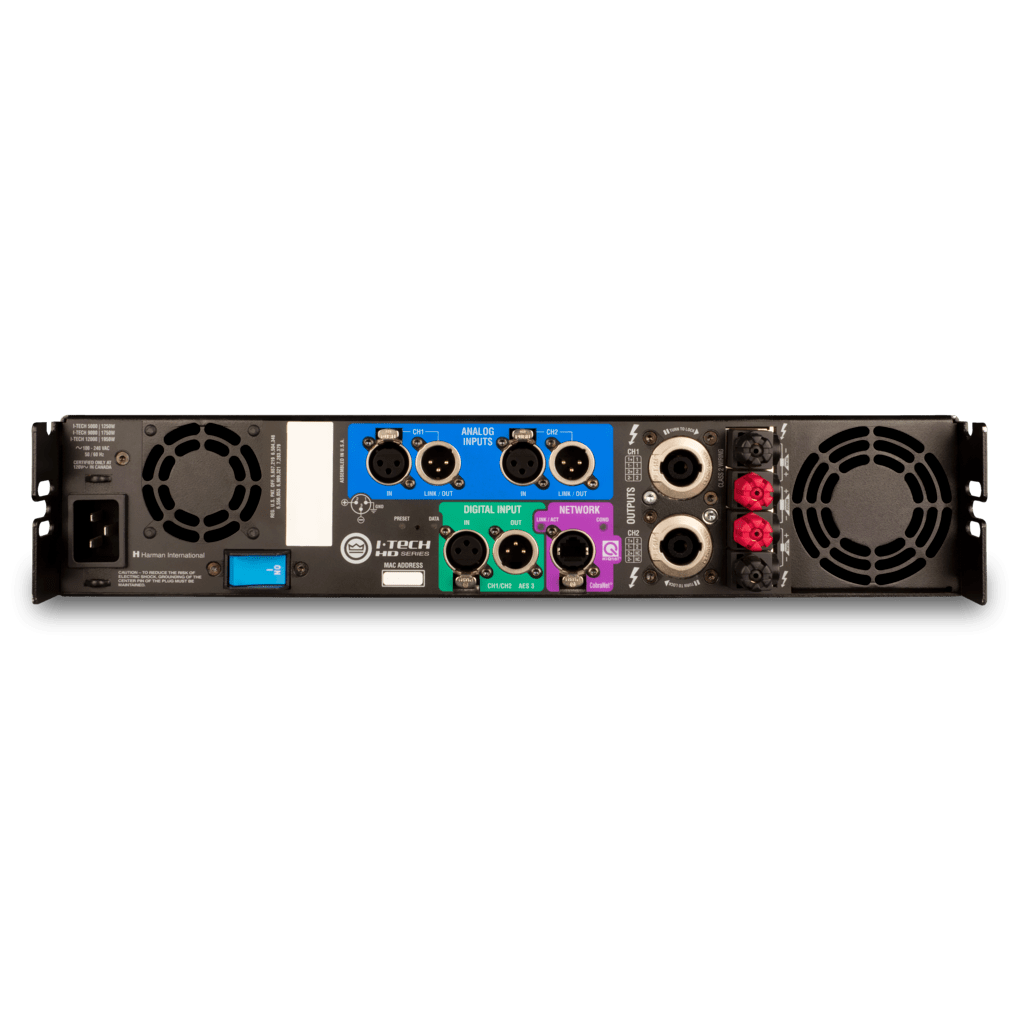

• The only product available with analog,AES/EBU,CobraNet®,HiQnet™and Ethernet connectivity

• User -definable front panel security feature

• The only tour sound amplifier that provides inputs routable to any output (analog,AES,or CobraNet)

Power

• Professional-grade connectors for all inputs and outputs

• Full power-supply voltage is always available,allowing instantaneous power on demand

• Quality-graded components let you safely drive the amplifier harder

• More total capacitance provides tremendous energy reserves for power bursts

• 200Vrms peak output voltage provides clean transient peaks
