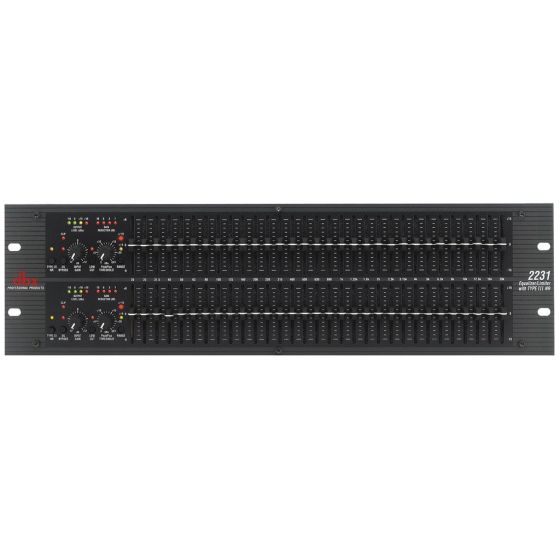

dbx 2231 Graphic Equalizer/Limiter with Type III
$569.00
Out of stock
SKU
DBX2231V
dbx 2231 Graphic Equalizer/Limiter with Type III
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
dbx 2231 Graphic Equalizer/Limiter with Type III™
Overview
Features
Specifications
Overview
20 Series EQs. You used to have to settle for second best in a reasonably priced EQ but not any more. With the new 20 Series from dbx® Professional Products you get a great EQ circuit,a graceful yet powerful limiter and the revolutionary new design of the Type III Noise Reduction. Check out the dbx 20 Series graphic EQs at your pro audio outfitter. You'll see,with the 20 Series EQs you get MORE!!!
Features
- Revolutionary instant encode/decode Type III® Noise Reduction in-circuit at the push of a button. Increases S/N ratio by up to 20dB
- Patent-pending PeakPlus™ Limiter threshold range from 0dBu to +24dBu (off) can transparently tame the wildest hits or the subtlest nuances of any signal
- Four segment LED bargraph for BOTH Gain Reduction AND Output Level
- Status LEDs offer visual feedback for all settings on the front panel
Specifications
| Input Connectors | 1/4" TRS,female XLR (pin 2 hot),and barrier terminal strip |
| Input Type | Electronically balanced/unbalanced,RF filtered |
| Input Impedance | Balanced 40 kOhm,unbalanced 20 kOhm |
| Max Input | >+21dBu balanced or unbalanced |
| CMRR | >40dB,typically >55dB at 1kHz |
| Output Connectors | 1/4" TRS,male XLR (pin 2 hot),and barrier terminal strip |
| Output Type | Impedance-balanced/unbalanced,RF filtered |
| Output Impedance | Balanced 200 ohm,unbalanced 100 ohm |
| Max Output | >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
| Bandwidth | 20Hz to 20kHz,+/-0.5dB |
| Frequency Response | <10Hz to >50kHz,+0.5/-3dB |
| Signal-to-Noise (NR In: +/-6 and +/-15dB ranges) | >102dB,unweighted,ref: +4dBu,22kHz measurement bandwidth |
| Dynamic Range (NR In: +/-6dB and +/-15dB ranges) | >120dB,unweighted |
| Signal-to-Noise (NR Out: +/-6dB range) | >94dB,unweighted,ref: +4dBu,22kHz measurment bandwidth |
| Dynamic Range (NR Out: +/-6dB range) | >112dB,unweighted |
| Signal-to-Noise (NR Out: +/-15dB range) | >90dB,unweighted,ref: +4dBu,22kHz measurement bandwidth |
| Dynamic Range (NR Out: +/-15dB range) | >108dB,unweighted |
| THD+Noise | <0.04%,0.02% typical at +4dBu,1kHz |
| Interchannel Crosstalk | <-80dB,20Hz to 20kHz |
| Noise Reduction | Up to 20dB of dynamic broadband noise reduction |
| NR Switch | Activates dbx Type III Noise Reduction |
| Bypass Switch | Bypasses the graphic equalizer section in the signal path |
| Low cut Switch | (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter |
| Range Switch | (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range |
| I/O Meter | 4-LED bar graph (Green,Green,Yellow,Red) at -10,0,+10,and +18dBu |
| Gain Reduction Meter | 4-LED bar graph (all Red) at 0,3,6,and 10dB |
| Indicators | NR Active (Yellow); EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) |
| Operating Voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz |
| Power Consumption | 28W |
| Power Connector | IEC receptacle |
| Dimensions | 5.25" H X 19" W X 7.9" D (13.335cm x 48.3cm x 20.1cm) |
