JBL AW295-LS High Power 2-Way All Weather Loudspeaker with 1 x 12 for Life Safety Applications

Weather-Resistant, All Fiberglass Enclosure EN54-24 Compliant 90° x 50° Coverage 2262H Differential Driver® Low- Frequency Driver 2432H High Frequency Compression Driver Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion Rotatable wave guide for vertical or horizontal orientation Available in Gray and Black finish 400 W, 70/100V Transformer Included U-type Mounting Bracket Included
$4,999.00
Out of stock
SKU AW295-LS

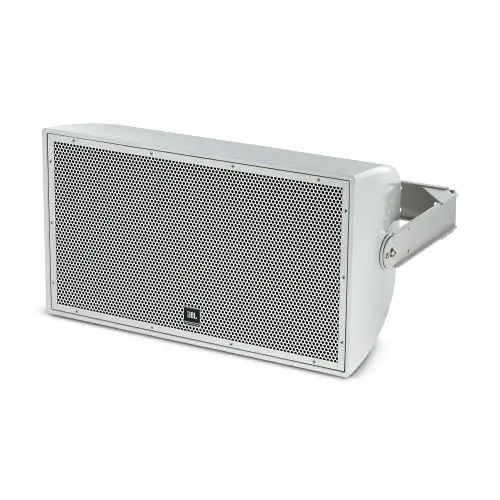

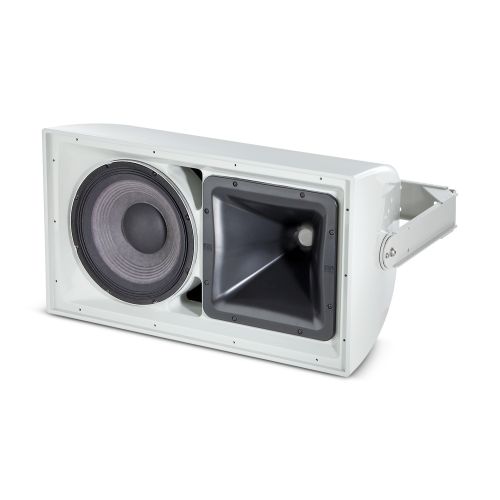

The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.

SPECIFICATIONS
  • Frequency Range (-10 dB) 74 Hz – 20 kHz

  • Frequency Response (±3 dB) 106 Hz – 18 kHz

  • Coverage Pattern 90° x 50°, rotatable waveguide

  • Coverage Angle 500 Hz 1000 Hz 2000 Hz 4000 Hz

  • Horizontal 139° 89° 76° 76°

  • Vertical 112° 86° 64° 38°

  • Directivity Factor (Q) 12.6

  • Directivity Index (DI) 11 dB

  • Crossover Frequency 1.3 kHz

  • Long-Term System Power Rating (IEC) 400 W (1600 W peak), 100 hrs

  • Maximum SPL 125 dB-SPL cont avg (131 dB peak)

  • Maximum SPL (@ 4m) 111.92 dB

  • System Sensitivity (1W @ 1m) 98 dB SPL

  • Sensitivity (1W @ 4m) 85.9 dB SPL

  • 70V / 100V Transformer Taps 70V: 400 W, 200 W, 100W

    • 100V: 400W, 200W
  • Low Frequency Driver 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil

  • Nominal Impedance 8 ohms

  • Sensitivity (1W @ 1m, within operational band) 96 dB SPL

  • High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

  • Nominal Impedance 8 ohms

  • Sensitivity (1W @ 1m) 113 dB SPL

  • Waveguide PT-H95HF-1

  • Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)

  • Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

  • Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

  • Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.

  • Environmental Specifications IP55C per IEC529

  • Dimensions (H x W x D in horizontal cabinet orientation) 409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in)

  • Net Weight 25.2 kg (55.5 lb)

    • More Information
    ConditionBrand New
    Country of ManufactureMexico
    ★★★★★
    ★★★★★
