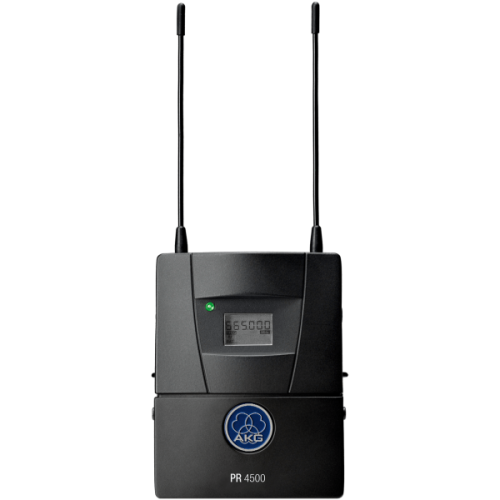

AKG PR4500 BD8 Reference Wireless Camera Receiver (old SKU: 3203H00150)

AKG PR4500 BD8 Reference Wireless Camera Receiver (old SKU: 3203H00150)
$900.00
In stock
SKU 3203H00300

Heavy-duty mobility

for ENG/EFP,event video and videography applications
The PR4500 ENG is a reference wireless diversity camera receiver,providing maximum ease of use with an automatic setup function and scan of the radio frequency environment.

The outstanding audio quality with a very high signal to noise performance avoids any disturbing ground noise whilst recording. A separate headphone output provides a direct monitoring possibility and the three step LED audio meter shows signal quality.

All relevant system information is shown on a prominent illuminated display. Its precise battery life readout is a valuable advantage during demanding field work.

Auto setup and environment scan
for quick and easy setup

Up to 18 simultaneous channels
for safe channel management in huge productions

Technical Specification

Audio
Audio Frequency bandwidth 35 to 20000 Hz
Signal to Noise 100 dB-A
THD at 1 kHz 0.8 Prozent
Enhanced
Operating temperature range -10 to 55 Celsius
Radio Sensitivity -100 dBm
Radio
Switching bandwidth 30 MHz
Recommended simultaneous channels 60
Number of selectable frequencies 1220 (selectable in 25kHz steps)
Frequency Selection Selectable frequency in 25kHz steps
Wireless channels within device -
Radio Range (Line of Sight) 100m (depending on antenna system)
Switchable RF Power no
Modulation FM
Encryption No encryption
Diversity True Diversity
Pilot Tone no
Antenna Interface
Amount 2
Type External Antenna fixed
Audio Outputs 1
Amount 1
Gender Female
Contacts 2-pin
Note Audio output for connection to camera
Audio Outputs 2
Amount 1
Type Jack Stereo (1/8")
Gender Female
Contacts 3-pin
Note Audio output for connection to headphones
Battery 1
Batterietype LR6 AA alkaline battery
Number of Batteries 2
Operating Time 12 h
Battery 2
Batterietype AKG BP 4000
Compatibel Charging System Ladestationen
Number of Batteries 1
Operating Time 14 h
Battery 3
Batterietype HR 6 AA (NiHM) rechargeable battery
Number of Batteries 2
Operating Time 14 h
Design
Body metal
Finish black
Dimensions / Weight
Length 70 mm
Width 25 mm
Height 91 mm
More Information
ConditionBrand New
★★★★★
★★★★★
