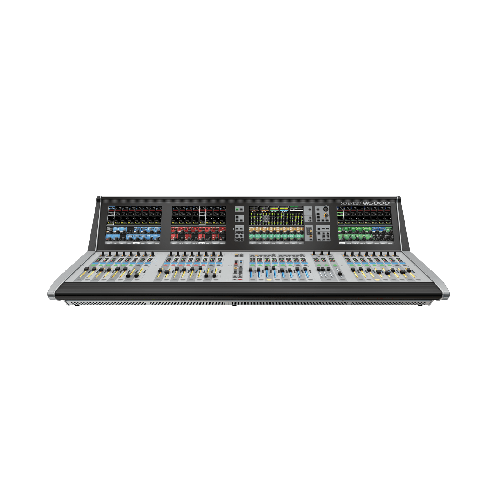

Soundcraft 5057292HU Vi5000 Control Surface

Soundcraft 5057292HU Vi5000 Control Surface

$41,397.00
In stock
SKU 5057292

The Vi5000 digital mixing consoles delivers the best Vi sound ever, bringing optional 96kHz processing, upgraded channel counts and even more reliable hardware to live sound's most popular mix interface.

Partnering a compact control surface with new Local Rack and Active Breakout box hardware, Vi delivers simultaneous mixing of up to 128 inputs and 32 mono/stereo busses.

Pristine sound quality is assured by ultra-low noise mic amp designs and enhanced 96kHz* 40-bit floating point digital audio processing, while FX come courtesy of 8 independent Lexicon multi-FX units, BSS DPR901ii integration and a BSS graphic EQ on every bus output. Rapid configuration and powerful automation features, radio mic status monitoring and extensive ViSi Connect I/O expansion (EtherSound, CobraNet, Dante, MADI, etc.) complete the package.

* Additional DSP cards and reduced channel count required for 96kHz operation

KEY NEW FEATURES:

  • The latest Vistonics & FaderGlow interface
  • Up to 128 inputs and 32 mono/stereo busses
  • Enhanced audio processing with 96kHz sample rate option
  • Powerful new features including BSS DPR901ii Dynamic EQ
  • New Local Rack hardware for 384 I/O channels
  • 128 channel record interface via MADI or Dante
  • Mix live with UA plug-ins (via Realtime Rack)
  • Huge connectivity options - Dante, Rocknet, Ethersound, Cobranet, MADI and more

Specifications

Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
Stagebox Mic In (min gain) to Local Line Out
Stagebox Mic In (max gain) to Local Line Out
Local Line In to Line Out
Mic Input E.I.N
Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input 80dB @ 1kHz
Sampling Frequency 48kHz or 96kHz
Latency: Stagebox Mic Input to Local Line output
AES/EBU Input Sample Rate 32-108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy
Internal Clock Jitter
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +28dBu max
Input & Output Levels - Line Inputs +22dBu max
Input & Output Levels - Line Outputs +22dBu max
Nominal Operating Level +4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 10kohm
Input & Output Impedances - All other analogue Inputs >10kohm
Input & Output Impedances - Line Outputs
Input & Output Impedances - AES/EBU Outputs 110ohm
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter 80Hz fixed, 12dB per octave
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption 300W
Operating Temperature 0°C - 45°C (32°F - 113°F)
Relative Humidity 0% - 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C - 60°C (-4°F - 140°F)
More Information
ConditionBrand New
★★★★★
★★★★★
