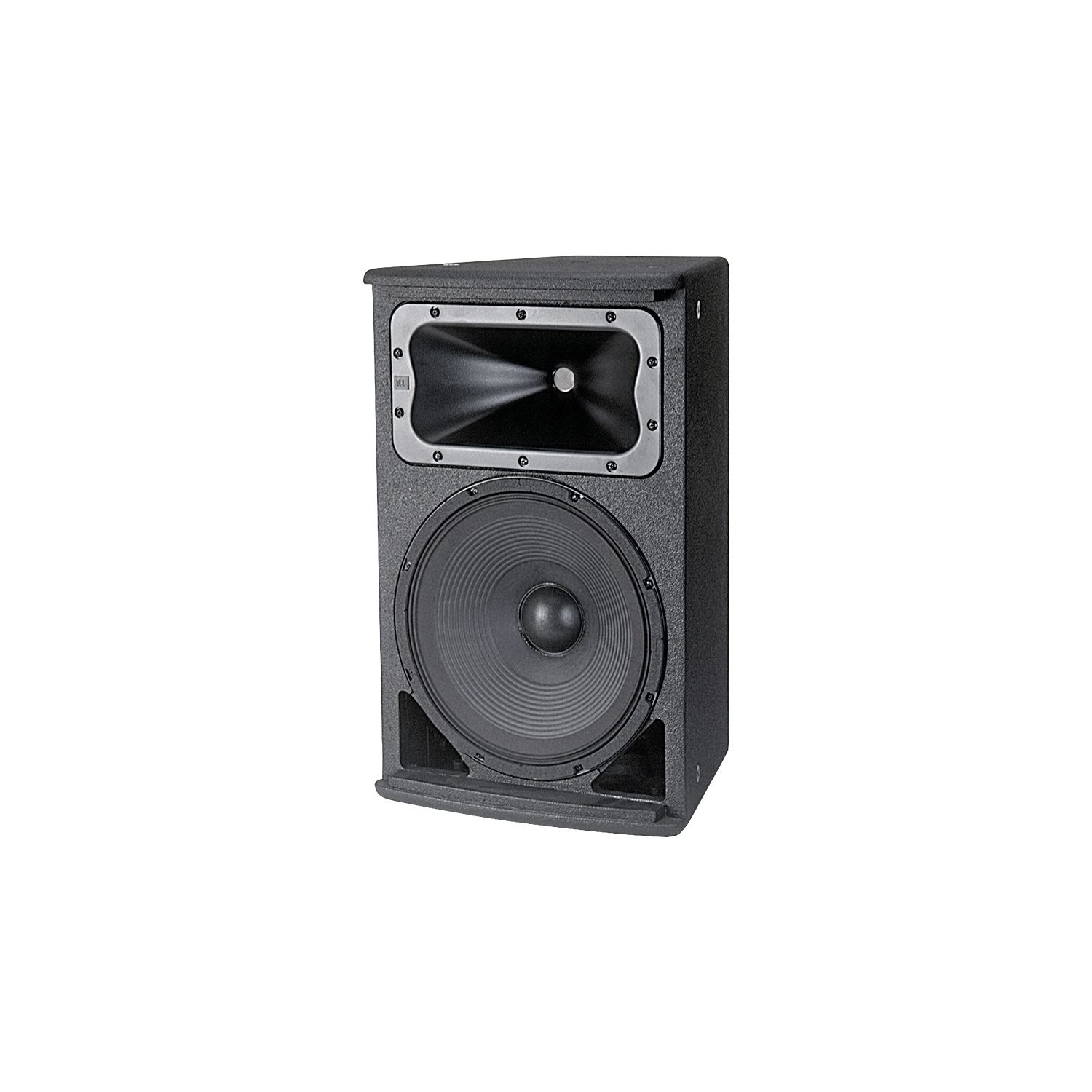

JBL AC2212/64 Compact 2-Way Loudspeaker with 1 x 12 LF

Name: JBL AC2212/64 Compact 2-Way Loudspeaker with 1 x 12 LF
Brand: JBL
SKU: AC2212/64
Price: 1242.00 USD
Availability: InStock

Be the first to review this product

$1,242.00

In stock

SKU

AC2212/64

PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.

Bi-Amp / Passive Switchable.

Optional U-Bracket Model MTU-4.

For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues.

More Information
Condition	Brand New
Country of Manufacture	Mexico

Skip to the end of the images gallery

Skip to the beginning of the images gallery

JBL AC2212/64 Compact 2-Way Loudspeaker with 1 x 12 LF, AC2212/64

Details

AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.

SPECIFICATIONS
Frequency Range 50 Hz - 19 kHz (-10 dB)
Frequency Response 55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern 60°x 40°
Directivity Factor (Q) 7.1
Directivity Index (DI) 8.5 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Slopes 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Transducer Power Rating (AES) LF: 300 W (1200 W peak), 2 hrs / 250 W (1000 W peak), 100 hrs / HF: 50 W (200 W peak), 2hrs
Long-Term System Power Rating (IEC) Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) / HF: 129 dB-SPL cont avg (135 dB peak)
Maximum SPL Passive mode: 120 dB-SPL cont avg (126 dB peak)
System Sensitivity Passive mode: 95 dB SPL (1W @ 1m)
