PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
Bi-Amp / Passive Switchable.
Optional U-Bracket Model MTU-4.
For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues.

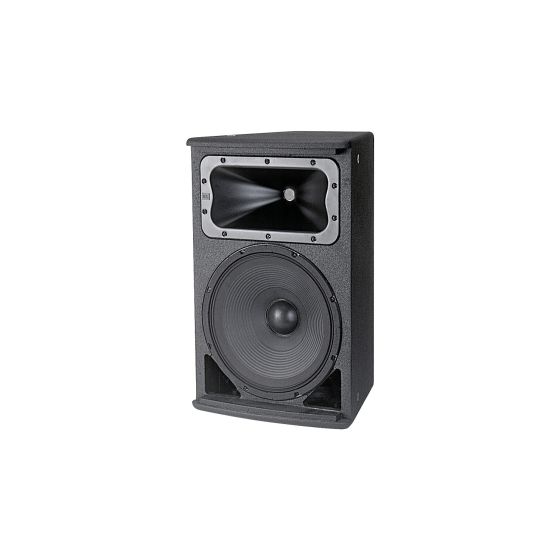

AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.
SPECIFICATIONS
Frequency Range   50 Hz - 19 kHz (-10 dB)
Frequency Response   55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern   90°x 50°
Directivity Factor (Q)   7.1
Directivity Index (DI)   8.5 dB
Crossover Modes   Bi-amp/Passive switchable
Passive Crossover Slopes   4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Transducer Power Rating (AES)   LF: 300 W (1200 W peak), 2 hrs / 250 W (1000 W peak), 100 hrs / HF: 50 W (200 W peak), 2hrs
Long-Term System Power Rating (IEC)   Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL   Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) / HF: 129 dB-SPL cont avg (135 dB peak)
Maximum SPL   Passive mode: 120 dB-SPL cont avg (126 dB peak)
System Sensitivity   Passive mode: 95 dB SPL (1W @ 1m)
More Information
Condition
Brand New
Country of Manufacture
Mexico
