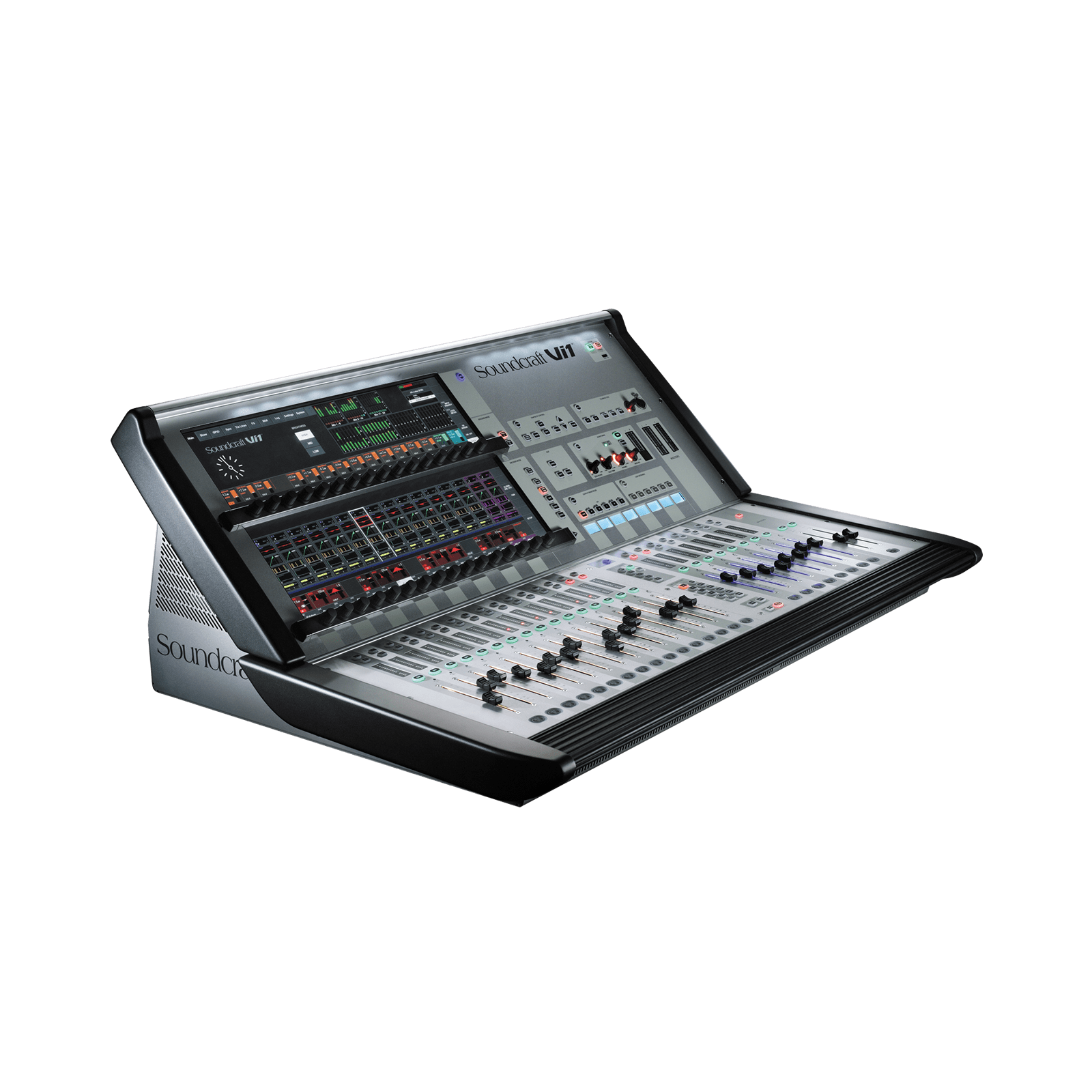

Soundcraft Vi1 Vi Series Console - 48 Channels
$23,295.00
Out of stock
SKU
5044496
Soundcraft Vi1 Vi Series Console - 48 Channels
| Condition | Brand New |
|---|
Overview
With the Soundcraft Vi Series now firmly established as a firm favorite digital desk on both the touring, broadcast and installed sound scenes. Soundcraft has taken this amazing platform to another, more affordable level with the release of the new Vi1 console.
Many users have asked for a smaller, lower-priced desk that still has the acclaimed VistonicsTM user interface, and of course the now-legendary optimal sound quality established with the Vi Series.
So here it is,the Soundcraft Vi1™.
A complete standalone console package with 32 channels of analogue input to 27 analogue outputs, plus 6 digital inputs,4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46chs,but by adding a stagebox (compatible with the existing Vi racks),simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses.
Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources.
The surface is just over a meter wide, and includes 16 motorized channel faders with fixed and user-definable layers,8 output/VCA faders and 2 master faders.
What's really cool about the Vi1 though, is the new Widescreen Vistonics interface, which will be instantly familiar to anyone who's driven a Vi6 or Vi4,as well as retaining the same 'walk-up' user-friendliness of the other Vi consoles. This new development displays all parameters for 16 channels side by side, on a single 22" Vistonics touch screen. The upper half of the screen handles the Output section control as well as Cue List or Menu displays. Parameter control is via two rows of 16 rotary encoders. Exactly the same channel functionality as the Vi6 and Vi4 is available here, along with all the same core snapshot, talkback and monitoring facilities.
Naturally, the Vi1 inherits many of the facilities of its larger siblings, including Soundcraft FaderGlow™,4 stereo Lexicon effects engines,BSS Audio graphic EQs on all output busses, and integral dynamics on all channels. The desk is also compatible with Vi2,4 and 6 show files.
As you'd expect, the price of the Vi1 is extremely attractive, which is sure to make it a clear winner with engineers and sound companies.
Technical Specifications
| Frequency Response | |
| Local Mic input to Line output | +0/-1dB,20Hz-20kHz |
| AES/EBU In to AES/EBU Out | +0/-0.2dB,20Hz-20kHz |
| T.H.D. & Noise | |
| 22Hz-22kHz | |
| Local Mic In (min gain) to Local Line Out | <0.003% @ 1kHz |
| Local Mic In (max gain) to Local Line Out | <0.020% @ 1kHz |
| Mic Input E.I.N. | <-125dBu (150? source) |
| 22Hz-22kHz bandwidth, unweighted | |
| Residual Noise | -95dBu |
| Local line output; no inputs routed, Mix fader @0dB | |
| CMRR | 80dB @ 1kHz |
| Local Mic input | |
| Sampling Frequency | 48kHz |
| Latency | |
| Local Mic Input to Local Line output | < 2ms @48kHz |
| AES/EBU Input Sample Rate | 32--108kHz (with SRC enabled) |
| DSP Resolution | 40-bit floating point |
| Internal Clock | |
| Accuracy | < +/- 50ppm |
| Jitter | < +/- 5ns |
| External Sync | BNC Wordclock |
| Input & Output Levels | |
| Mic Inputs | +25dBu max |
| Line Outputs | +22dBu max |
| Nominal Operating Level | 0dBu (-18dBFS) |
| Input & Output Impedances | |
| Mic Inputs | 2k7? |
| All other analogue Inputs | >10k? |
| Line Ouptuts | <75? |
| AES/EBU Outputs | 110? |
| Oscillator | 20Hz to 20kHz/Pink/White Noise,variable level |
| Channel HP Filter | 20Hz-600Hz,18dB per octave |
| Channel LP Filter | 1kHz-20kHz,18dB per octave |
| EQ (Inputs and Bus Outputs) | |
| HF | 20Hz-20kHz,+/-18dB,Q= 0.3-8.7 or shelving |
| Hi-Mid | 20Hz-20kHz,+/-18dB,Q=0.3-8.7 |
| Lo-Mid | 20Hz-20kHz,+/-18dB,Q=0.3-8.7 |
| LF | 20Hz-20kHz,+/-18dB,Q= 0.3-8.7 or shelving |
| Metering | Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s. |
| Mains Voltage Operating Range | 90-264V,47-63Hz, autoranging |
| Mains Power Consumption | |
| Control Surface | 100W |
| Internal Mass Storage | 4GB Compact Flash Card |
| Temperature/Humidity Range | |
| Operating Temperature Range | 0°C -- 45°C (32°F -- 113°F) |
| Relative Humidity | 0% -- 90%, non-condensing Ta=40°C (104°F) |
| Storage Temperature Range | -20°C -- 60°C (-4°F -- 140°F) |
| Soundcraft reserves the right to improve or otherwise alter any information supplied in this document or any other documentation supplied hereafter. E&OE 03/06 |
