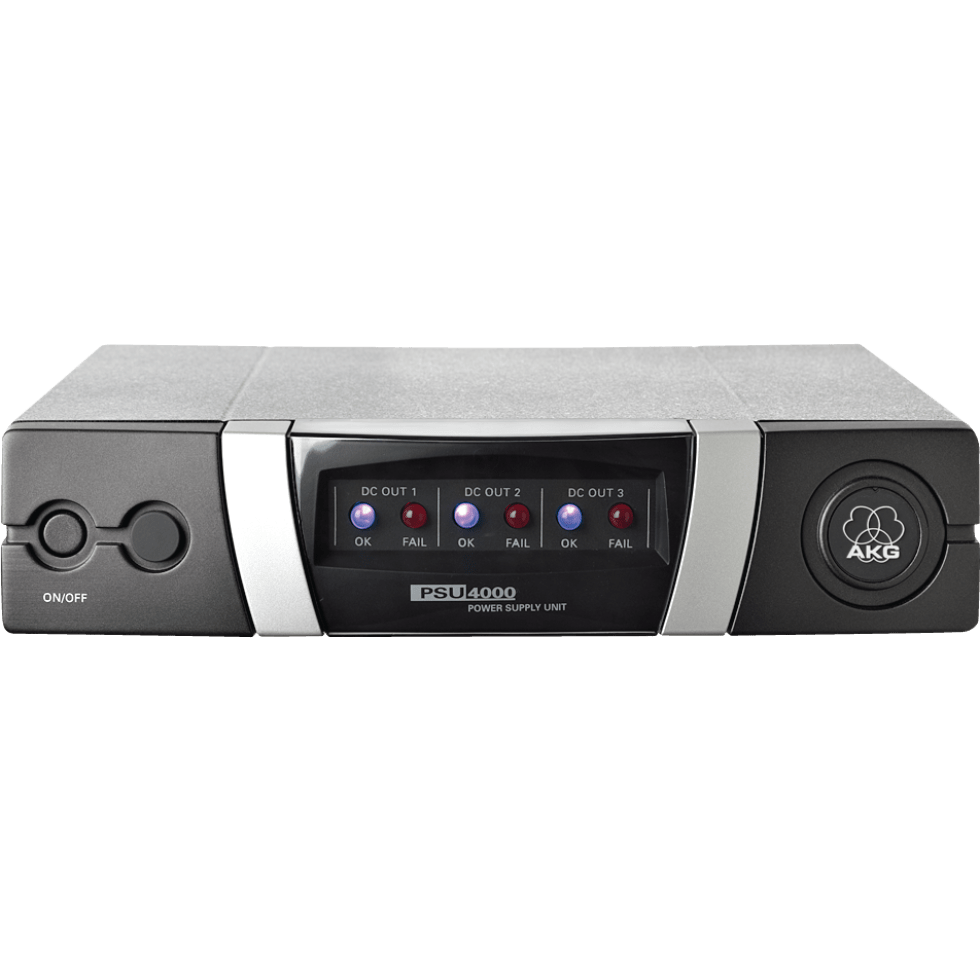

Power it up for PS4000,SPC4500,HUB4000 Q,WMS receivers and charging units The PSU4000 is a central power supply unit for components of the WMS wireless microphone and IVM in-ear monitoring systems. It provides an IEC power socket and a switch mode power supply for worldwide use. The PSU4000 features three high current 12V/2A DC outputs via lockable DC connectors.
The PS4000 comes in a rugged half-rack metal housing. It can supply up to 12 stationary receivers via the PS4000 W antenna splitter or four stationary IEM transmitters via SPC4500. Alternatively,it can power up to three charging units (CU4000 or CU700) or HUB4000 Q.
Rugged half-rack metal housing for a flexible,space-efficient system configurations
Lockable DC output for secure,failure-free connection
Three high-current 12V/2A DC outputs universal power supply for large systems
Technical Specification
Powering Input
Gender
Male
Type
IEC Socket
Voltage
90 to 264 V
Powering Output
Amount
3
Gender
Male
Output Current
2,500 2,000 2,000 mA
Output Voltage
12 12 12 V
Type
Lockable DC Socket
Design
Body
Metall
Finish
black
Dimensions / Weight
Length
190 mm
Height
44 mm
Width
200 mm
More Information
Condition
Brand New
