Antelope Audio Discrete 4 Synergy Core Audio Interface

Limited time offer! Valid until March 31st! Get a FREE Edge Solo modeling mic ($695!!) + full version DAW Bitwig Studio 3 ($400!!)+ 37 included FX + 5 bonus FX ($$$ Analog Curator FX Bundle) with purchase of a Synergy Core interface!

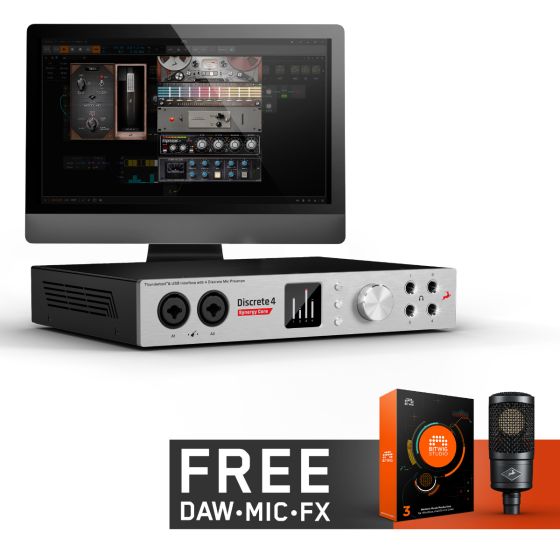

Discrete 4 Synergy Core

Put Antelope Audio's pristine AD/DA conversion and massive effects processing power on your desktop with the Discrete 4 Synergy Core audio interface. A hot-rodded upgrade to Antelope's popular Discrete 4 audio interface, the Discrete 4 Synergy Core gives you dual DSP chips plus an FPGA processor working in harmony to run Antelope's expansive library of effects, as well as 3rd-party effects joining the Synergy Core platform. The Antelope Audio Discrete 4 Synergy Core interface offers 4 console-grade discrete mic preamps, 14 total inputs and 16 outputs, renowned Antelope digital clocking, and both Thunderbolt and USB connectivity for your Mac or PC. Best of all, the Discrete 4 Synergy Core comes with $3,000+ of Antelope's top effects plug-ins included free, so you can record, monitor, mix, and master your projects with world-class sound from start to finish.

With a price-to-performance ratio that goes toe-to-toe with any Thunderbolt or USB audio interface available, the Antelope Audio Discrete 4 is ideal for musicians, artists and producers who need a compact, road-ready recording setup that unlocks unprecedented power to create.

Key Features:

• - Synergy Core - New Milestone Technology & Future-proof FX processing platform (DSP + FPGA)
• - Best-in-class AD/DA conversion with 121 dB dynamic range
• - 36 Synergy Core effects plug-ins included -- a $3,000+ value
• - Sub-millisecond round-trip latency
• - Antelope clocking technology on board with Word Clock output to keep your studio in sync
• - Desktop USB/Thunderbolt audio interface with 4 console-grade mic preamps
• - 4 XLR-1/4" combi inputs for mic/line/instrument sources
• - L/R Monitor TRS 1/4" line outputs plus 4 TRS 1/4" line outs
• - Expandable via S/PDIF and ADAT
• - 35 effects expansions available separately, including AFX2DAW Bridge
• - All effects can be automated in DAW without CPU load, thanks to AFX2DAW Bridge (Mac only)
• - Hand-built in a road-worthy metal case

Synergy Core Processing: Future-Proof Your DAW with DSP + FPGA processing

Under the hood, the Discrete 4 Synergy Core is loaded with twin DSP chips plus an FPGA processor that work together to run Antelope Audio's vast collection of vintage-inspired effects plug-ins -- without sapping power from your host Mac or PC. Synergy Core increases your recording rig's stability by offloading audio effects processing to your Discrete interface's dedicated chips. Adding the Discrete 4 Synergy Core to your system means your DAW can make more efficient use of available CPU power -- extending the life cycle of your existing Mac or PC, so you don't have to upgrade to a latest-spec computer just to run all your favorite plug-ins. With Antelope effects running on Antelope hardware, your system is optimized right out of the box -- allowing you to shorten your audio buffer size, reduce latency, eliminate clicks and pops, and free up your host computer to run CPU-heavy VST synths, samplers, and native time-based effects.

1 FPGA + 2 DSP = More Effects, More Variety

Antelope Audio's industry-leading FPGA audio processing platform gives you lower latency in effects chains, allowing you to stack effects while adding mere microseconds, not milliseconds, to your signal. The Discrete 4 Synergy Core fuses both FPGA + DSP chips in one Antelope audio interface, harnessing the parallel processing power of FPGA alongside the latest-generation state-of-the-art ARM DSP chips developed for cloud computing and mobile tech -- processors that deliver a faster clock rate than other DSP chips used in the audio interface market. This exclusive hybrid architecture offers computing power synergies unique to Antelope Audio, greatly expanding the variety of Antelope effects that can be developed -- including time-based delays, choruses, flangers, and beyond. Your Discrete 4 Synergy Core arrives loaded with 36 Antelope FX included free -- classic compressors, studio EQs, must-have reverbs, tube guitar amp models based on iconic vintage gear -- and all the processing power you need to run them!

Uncompromising Analog-to-Digital and Digital-to-Analog Conversion Quality

A-to-D and D-to-A converters are at the heart of every DAW-based audio recording and playback system -- and your converters can make or break your studio. That's why the Antelope Audio Discrete 4 Synergy Core is loaded with proven, best-in-class AD/DA with 121 dB of dynamic range on the analog inputs and monitor outputs -- so you can capture and monitor your sound with Antelope clarity at up to 192 kHz/24-bit resolution.

Comprehensive I/O in a Portable Desktop Audio Interface

The Discrete 4 Synergy Core offers all the same I/O as Antelope's hit original Discrete 4 interface. With both USB and Thunderbolt I/O, the Discrete 4 Synergy Core lets you choose how you want to connect to your Mac or Windows PC. On the front panel, you'll find two XLR-1/4" combi inputs with switchable mic/line/instrument preamps, and four independent headphone outputs -- enough for you and all the artists you're recording. Take a look at the back panel, and you'll see two more XLR-1/4" combi inputs, two 1/4" outputs to feed your monitors plus 4 more line outs to connect to outboard gear, ADAT and S/PDIF digital I/O via optical TOSlink, and two Word Clock outputs to get your studio in sync with Antelope's legendary digital clocking. Hand-built by Antelope engineers to give you extensive analog and digital I/O in a robust, compact unit, the Discrete 4 Synergy Core gives you serious bang for your I/O buck.

Antelope Audio's Proven Clocking Technology

Top recording studios, film and broadcast facilities, and massive live productions rely on Antelope Audio master clocks like the OCX HD and Pure2 to maintain stability and sonic integrity in PCM digital audio. A reliable master clock lies at the heart of every pro studio, and the Discrete 4 Synergy Core wouldn't be an Antelope Audio interface if it didn't offer rock-solid clocking. Loaded with Antelope's 4th-Generation 64-bit Acoustically Focused Clocking (AFC) jitter management algorithm, the Discrete 4 Synergy Core offers two 75-ohm BNC Word Clock outputs so you can expand your studio with more digital gear and clock it all to the Discrete 4 Synergy Core. Add Antelope's industry-leading digital clocking to your studio, and capture recordings with greater clarity, dimension and detail.

36 Synergy Core effects plug-ins included -- a $3,000+ value

Plugin Type

1 Gyraf Gyratec IX Tube Mic Preamp

2 VCA160 Compressor

3 Stay-Levin Compressor

4 FET-A76 FET Compressor

5 VEQ-1A Tube EQ

6 VMEQ-5 Tube EQ

7 X903 Compressor / Limiter

8 FeedForward Antelope Compressor Compressor

9 Clear Q Parametric EQ

10 Power EX Expander

11 VEQ-HLF Passive High/Low Filter

12 Auraverb Reverb

13 BA-31 Mic Preamp

14 Power Gate Gate

15 Plexi 59 (UK) Tube Guitar Amp

16 Bass SuperTube VR Tube Guitar Amp

17 Darkface 65 (US) Tube Guitar Amp

18 Top30 (UK) Bright Tube Guitar Amp

19 Tweed Deluxe (US) Tube Guitar Amp

20 Overange 120 (UK) Tube Guitar Amp

21 BurnSphere (DE) Lead Tube Guitar Amp

22 Marcus II (US) Lead Tube Guitar Amp

23 Modern (US) CH3 Tube Guitar Amp

24 Rock 75 (UK) Tube Guitar Amp

25 Rock 22.10 (UK) Tube Guitar Amp

26 Darkface 65 2x12 Guitar Cabinet

27 Top30 2x12 Guitar Cabinet

28 Modern 4x12 Guitar Cabinet

29 Green 2x12 Guitar Cabinet

30 Vintage 4x12 Guitar Cabinet

31 Green 4x12 Guitar Cabinet

32 Caliper 50 1x10 Guitar Cabinet

33 Bluelux 1x12 Guitar Cabinet

34 Clst 1x12 Guitar Cabinet

35 England 4x12 Guitar Cabinet

36 Bass Tube 1x15 Guitar Cabinet

37 A-Tuner Guitar Tuner

Specifications:

ANALOG

Analog Inputs

• 2 x Mic / Line Inputs
• 2 x Mic / Line / Hi-Z Inputs

Analog Outputs

• 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
• 4 x Line Outs on TRS, +20 dBu max
• 4 x Stereo Headphone Outputs

Mic Preamp

• EIN: -128 dBu (A-weighted)
• Dynamic Range: -121 dB (A-weighted)
• THD: -106 dB
• Max input: +18 dBu
• Max Gain: 65 dB

D/A Monitor Converter

• Dynamic Range: 121 dB
• THD + N: -100 dB

A/D Converter

• Dynamic Range: 121 dB
• THD + N: -112 dB

D/A Converters(Line Out)

• Dynamic Range: 118 dB
• THD + N: - 100dB
• DC Coupled

DIGITAL

Digital Inputs

• 1 x ADAT (up to 8CH)
• 1 x S/PDIF

Digital Outputs

• 1 x ADAT (up to 8CH)
• 1 x S/PDIF

USB 2.0 I/O

• USB 2.0 Type B connector

Thunderbolt

• Thunderbolt connector

CLOCKING

Word Clock Outputs

• 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System

• 4th Generation Acoustically Focused Clocking
• 64-bit DDS

Sample Rates (kHz)

• 32, 44.1, 48, 88.2, 96, 176.4, 192

Other

Operating Temperature

• 0-50°C, 32-122°F

Weight (Approx)

• 1.7 kg/ 3.7 lbs

Dimensions (Approx)

• Width: 261 mm / 10.2”
• Height: 44 mm / 1.7”
• Depth: 208 mm /8.2”

Power Consumption

• 15 Watts

In the box

• Discrete 4 Synergy Core Interface
• Quick Start Guide
• Wart External Power Supply Unit
• USB Cable
• Warranty Card
