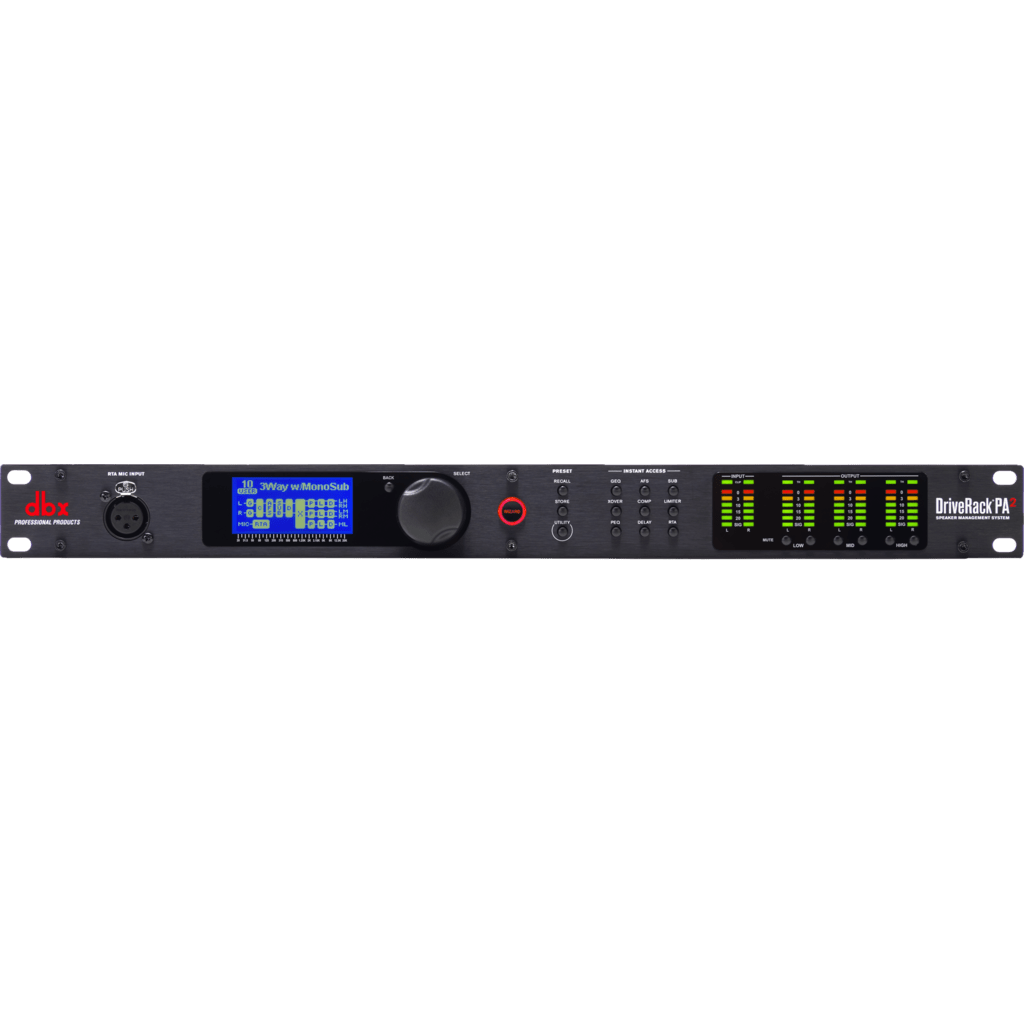

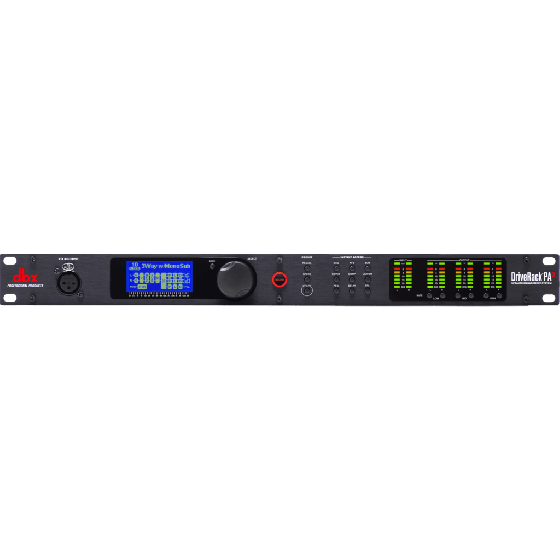

dbx DriveRack PA2 Complete Loudspeaker Management System
$635.00
Out of stock
SKU
DBXPA2-V
dbx DriveRack PA2 Complete Loudspeaker Management System
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
dbx DriveRack PA2 Complete Loudspeaker Management System
Overview
ALL YOU NEED TO GET THE MOST FROM YOUR PA. NOW WITH COMPLETE CONTROL FROM YOUR MOBILE DEVICE.
The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms,a new input delay module for delaying the FOH system to the backline,Ethernet control via an Android®,iOS®,Mac®,or Windows® device,and updated Wizards,the DriveRack PA2 continues the DriveRack legacy of great-sounding,powerful,and affordable loudspeaker management processors,for a whole new generation.
AUTOEQ
New,improved AutoEQ algorithm ensures an extremely accurate,fast,and non-intrusive automatic EQ experience.
With the RTA Mic “listening” to your room,the new,updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly,without subjecting the audience to annoying,lengthy broadcasts of pink noise.
ENHANCED AFS™ FEEDBACK ELIMINATION
Enhanced AFS™ algorithm for faster,more precise feedback elimination,without adversely affecting your system’s tone.
Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately,dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance,while never altering your sound.
UPDATED WIZARD SETUP FUNCTIONS
Updated Wizards make initial set up easy,while ensuring speaker tunings and other settings are up-to-date.
Wizard functions on the DriveRack PA2 guide you through easy,step-by-step processes to help you get the most from your loudspeaker system. Helps you easily configure level balancing,AutoEQ,Advanced Feedback Suppression,and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers.
AVAILABLE INPUT PROCESSING
- dbx Compression
- AFS™ (Advanced Feedback Suppression)
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ)
- Subharmonic Synthesis
AVAILABLE OUTPUT PROCESSING
- Crossover (supports full range,2-way,and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
Features
- All New Setup Wizard
- Streamlined AutoEQ™
- All New AFS™ (Advanced Feedback Suppression)
- Mobile Control (Android®,iOS®,Mac®,Windows®)
- dbx Compression
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
- Subharmonic Synthesis
- Crossover (supports full range,2-way,and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings) Output
- dbx Limiting
- Driver Alignment Delays
Specifications
| Input | (2) line inputs. (1) RTA Mic input |
| Input Connectors | (2) Female XLR line inputs. (1) Female XLR RTA Mic input |
| Input Type | Electronically balanced/RF filtered |
| Input Impedance | >50 kohm |
| A/D Converter | dbx Type IV™ Conversion System |
| CMRR | > 45dB |
| Mic Preamp Phantom Power | +15VDC (RTA) |
| Mic Preamp Equivalent Input Noise (EIN) | < -117dB,22Hz-22kHz,150 ohm (RTA) |
| Output | (6) Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically balanced,RF filtered |
| Output Impedance | 120 Ω |
| Max Output | +20dBu |
| A/D Dynamic Range | 112 dB A-weighted,110 dB unweighted |
| Type IV Dynamic Range | 123 dB with transient material,A-weighted,22kHz BW; 121 dB with transient material,unweighted,22kHz BW; 115 dB typical with program material,A-weighted,22kHz BW |
| Input Delay Length | 100ms |
| Alignment Delay | 10ms per channel (60ms total) |
| Sample Rate | 48kHz |
| Dynamic Range | >110 dB A-weighted,>107dB unweighted |
| THD+Noise | 0.003% typical at +4dBu,1kHz,0dB input gain |
| Frequency Response | 20Hz – 20kHz,+/- 0.5dB |
| Interchannel Crosstalk | < -110 dB,-120dB typical (input-to-output: < -100 dB) |
| Operating Voltage | 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz |
| Power Consumption | 22 W |
| Unit Weight | 5.25 lbs. (2.4 kg) |
| Shipping Weight | 6.75 lbs. (3.1 kg) |
| Dimensions | 1.75” (H) x 5.75” (D) x 19” (W),4.4cm (H) x 14.6cm (D) x 48.26cm (W) |
| D/A Dynamic Range | 112 dB A-weighted,110dB unweighted |
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
