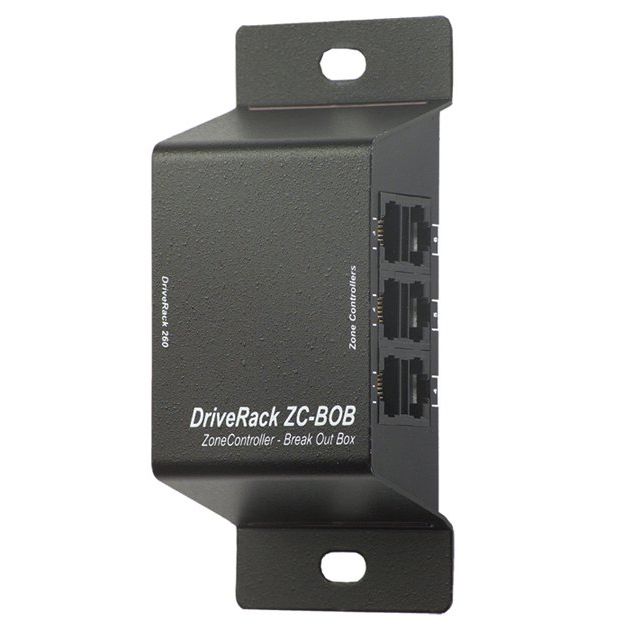

dbx ZC-BOB Wall Mounted Break Out Box
$159.99
Out of stock
SKU
DBXBOB-V
dbx ZC-BOB Wall Mounted Break Out Box
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
Overview
The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-4 provides program change capability from contact closures for the DriveRack 220i and 260; it can also provide source selection, page steering, or scene selection for ZonePRO devices.
More Details
Architects' and Engineers' Specifications:
The remote device shall provide programmable program selection via contact closures for the dbx® DriveRac®k 220i and 260 devices. The remote device shall also provide contact closure programmable source selection, page assignment, or scene selection for the dbx ZonePRO™ devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-4 remote controller.
Specifications
| Connectors | (2) RJ-45 |
| Series Wiring | Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft. |
| Parallel Wiring using ZC-BOB | Up to Six Zone Controllers: 1000 ft. |
| Parallel Wiring Cable | CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher. |
| Safety Agency Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
