dbx ZC6 Wall-Mounted Zone Controller
$82.00
In stock
SKU
DBXZC6V

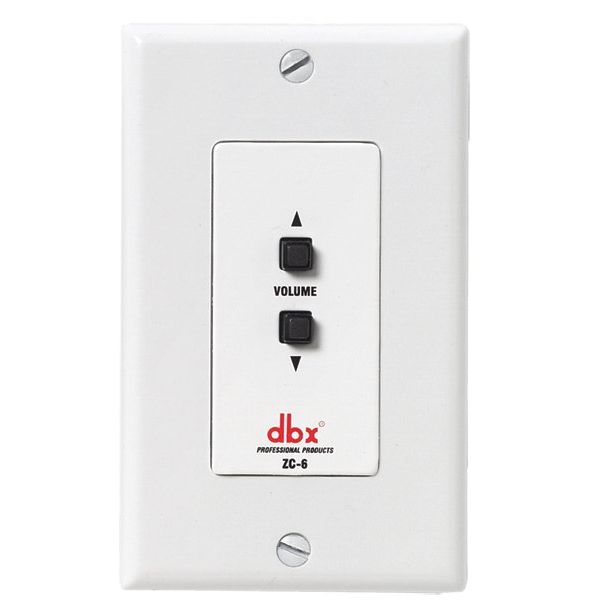

dbx ZC6 Wall-Mounted Zone Controller
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
Frequently Bought Together
- This Item: $82.00
- dbx ZC8 Wall Mounted Zone Controller $129.99
Total price $211.99
Overview
The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-6 is a programmable volume control for ZonePRO devices.
More Details
Architects' and Engineers' Specifications:
The remote device shall provide computer programmable push-button up/down volume control for the dbx® ZonePRO™ devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-6 remote controller.
Specifications
| Connectors | (2) RJ-45 |
| Series Wiring | Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft. |
| Parallel Wiring using ZC-BOB | Up to Six Zone Controllers: 1000 ft. |
| Parallel Wiring Cable | CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher. |
| Safety Agency Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
