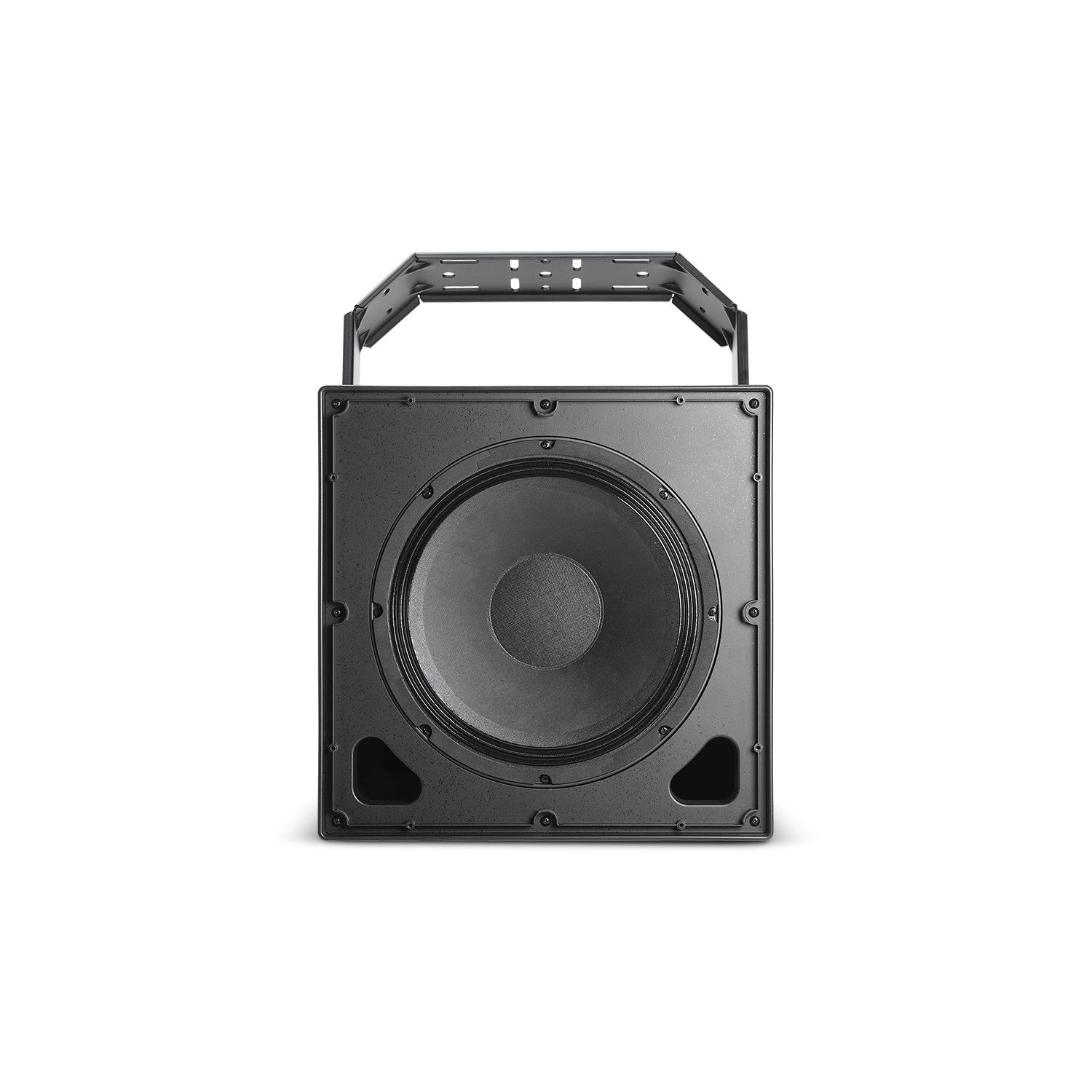

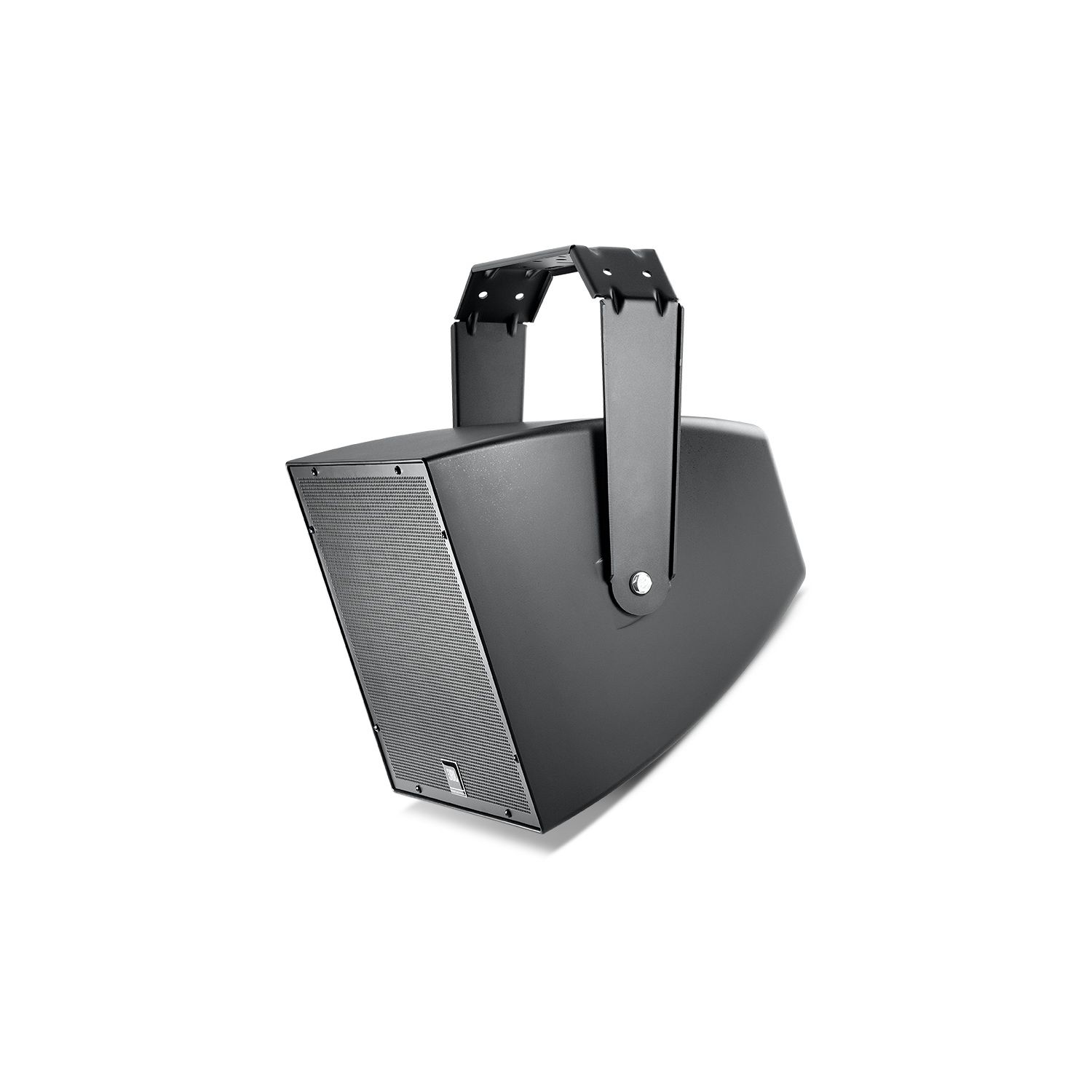

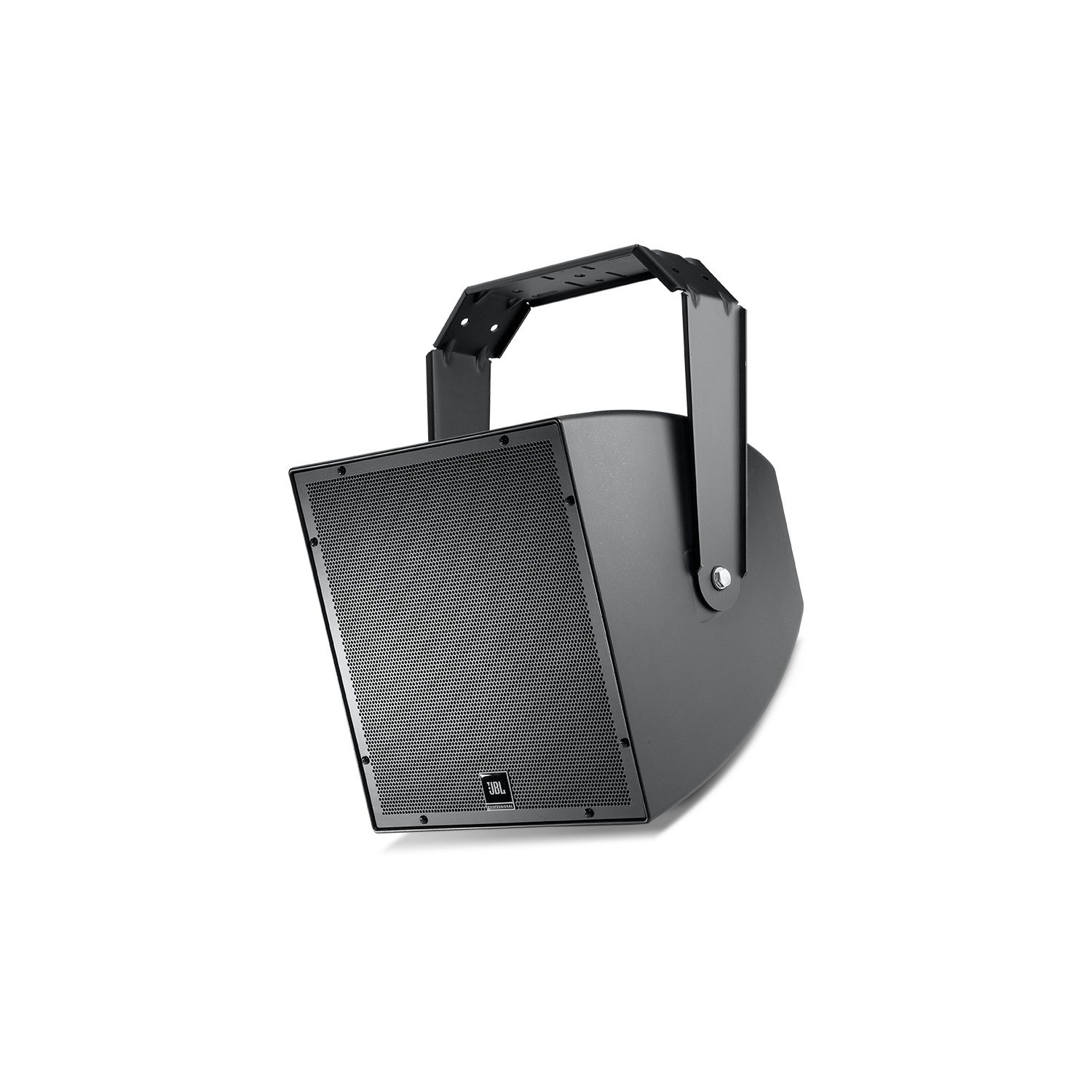

JBL AWC15LF All-Weather Compact Low-Frequency Speaker with 15 LF Black
$1,129.00
Out of stock
SKU
AWC15LF-BK
Low frequency reinforcement for outdoor applications
Highly weather-resistant IP56 rating
Component:
• 380 mm (15 in) woofer with Kevlarreinforced cone and 75 mm (3 in) voice coil.
500 Watt power handling (average continuous pink noise)
Frequency range down to 45 Hz
300 Watt 70V/100V multi-tap transformer or direct 8Ω low-impedance.
| Condition | Brand New |
|---|---|
| Country of Manufacture | China |
The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.
SPECIFICATIONS
Frequency Range (-10 dB) 45 Hz – 2.2 kHz
Frequency Response (±3 dB) 70 Hz – 1.2 kHz
Long-Term System Power Rating (IEC) 500 W (2000 W peak), 2 hrs.
300 W (1200 W peak), 100 hrs.
Sensitivity (2.83V @ 1m) 94 dB (Ave. 80 Hz – 300 Hz)
Maximum SPL Direct 8Ω: 121 dB (peaks of 127 dB)
300 W Tap: 119 dB (peaks of 125 dB)
Nominal Impedance 8 ohms (in Direct mode)
Transformer Taps 70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W
Low Frequency Driver 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw.
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet / 507 mm (19.9 in) depth with gland nut / 546 mm (21.5 in) including bracket extending to back
Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel.
SPECIFICATIONS
300 W (1200 W peak), 100 hrs.
300 W Tap: 119 dB (peaks of 125 dB)
100V: 300W, 150W, 75W
