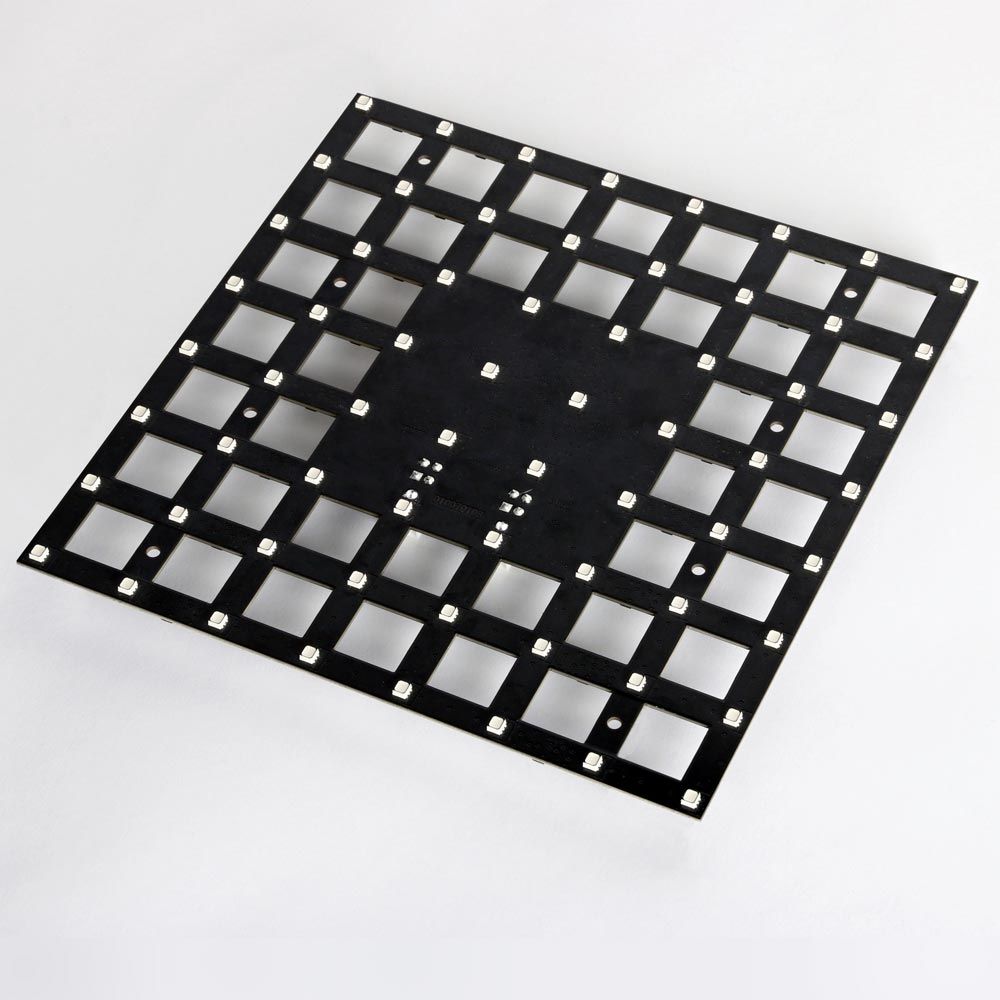

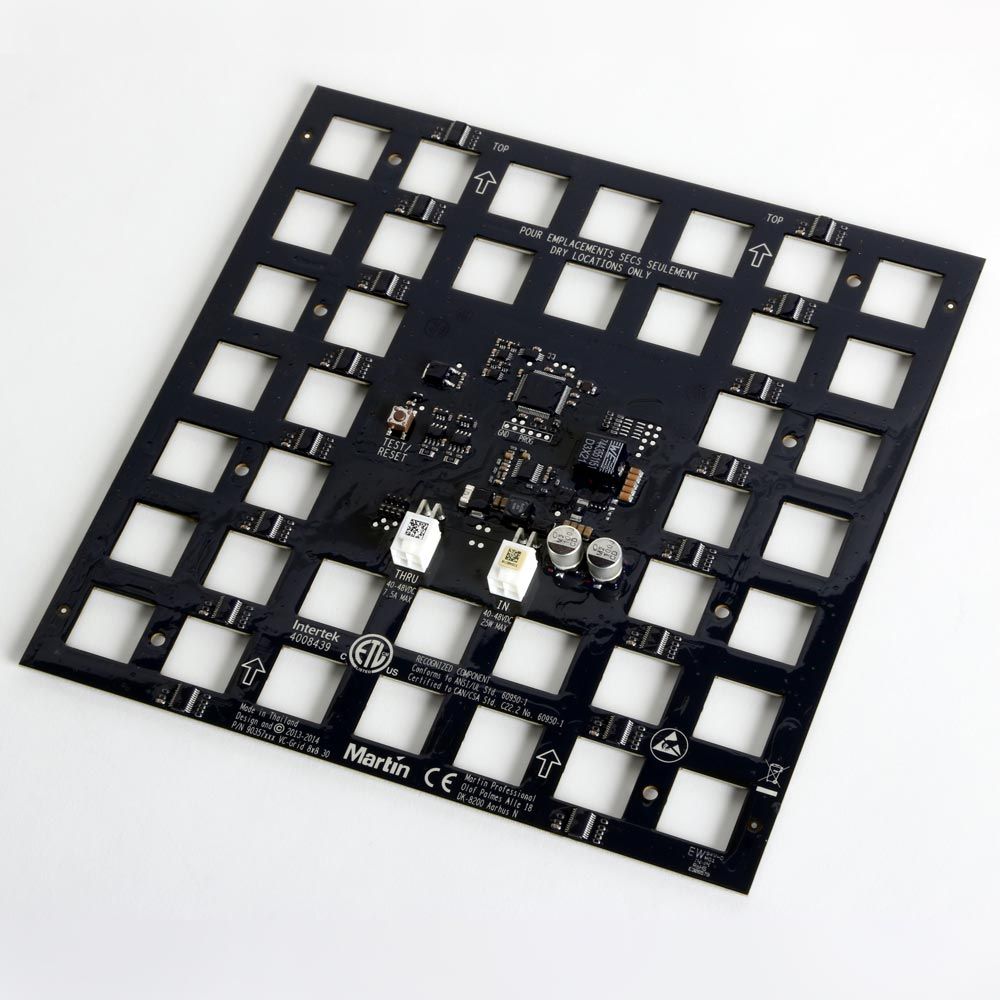

The VC-Grid 30 is a small, 240 x 240 mm LED video module with a 30 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid's compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

Wide range of pixel pitches to suit every application

Easy cabling, mapping and configuration

Bright and fully calibrated for optimal consistency

Feature:

• 30 mm pixel pitch
• 64 individually controllable pixels
• DMX Control
• P3 Control with VideoMapping
• Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
• 2750 nits of brightness
• 8250 lumen per square meter
• High-quality 16-bit per color image processing technology
• Pixel-level brightness and color calibration for optimal image quality and matching between products
• Intuitive mapping and addressing via P3 System Controller
• Combined power/data input (single cable for power and data input)
• Combined power/data thru (to daisy-chain multiple VC-Grids)
• Supported by integrated power and data processor (P3 PowerPort 1500 or DMX PowerPort 375) and simple cabling system
• Custom designs available on request (pixel pitch and module dimensions)
• Compatible with VC-Strip 30
