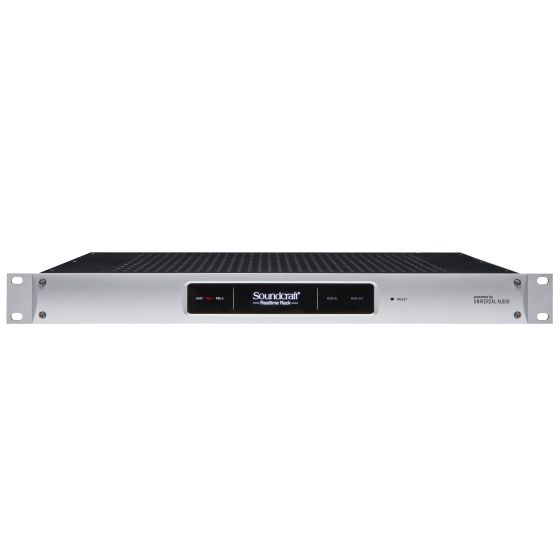

Soundcraft 1U Realtime Rack Core Live Sound Plug-In Processor

Overview
The result of a unique collaboration between live sound mixing experts Soundcraft and renowned plug-in manufacturer,Universal Audio,the Soundcraft Realtime Rack brings industry-standard UAD studio plug-ins to the Soundcraft platform. The Realtime Rack hardware and software delivers tight integration of Soundcraft Vi consoles and UAD Powered Plug-Ins,with (48 kHz) sub-2 millisecond latency and full snapshot store and recall with Soundcraft's CUE/Snapshot system. Realtime Rack's robust SHARC-based processors run audio over standard Optical MADI connections and dual-redundant internal power supplies ensure that audio signals keep running,even in the event of a power supply failure. Soundcraft Realtime Rack brings the stability of DSP and the sound quality that Soundcraft and Universal Audio are known for in a scalable,low-latency processing environment.


UAD Powered Plug-Ins. What Live Sound has been waiting for

Combining the intuitive Vistonics operator interface with pristine sound quality and powerful mixing features,the Soundcraft Vi Series is already established as the first-choice live sound mixing console for touring and installed applications worldwide.

Now the new Soundcraft Realtime Rack provides access to Universal Audio's acclaimed analogue audio processing emulations and award-winning UAD plug-ins. Realtime Rack software gives Vi console operators all the control they need to insert UAD plug-ins on individual channels,auxiliary channels,and master busses - just as easily as real hardware. A comprehensive snapshot system allows total recall of all plug-ins and their settings,while tight network integration with the Vi Series ensures that all settings of the application are stored inside the console.

Two versions are available: The Realtime Rack Ultimate Live with 74 plug-ins available,and theRealtime Rack Core Live with 14 plug-ins. Additional UAD plug-ins can be purchased any time from UA's Online store.

The UAD Powered Plug-Ins platform offers the world's most authentic analogue hardware emulations and award-winning audio plug-ins. Powered by Universal Audio's DSP Accelerator hardware,UAD Powered Plug-Ins deliver rich,analogue sound quality that would be difficult or impossible to achieve with native recording systems.

From rare compressors and equalizers,to vintage reverb processors and tape machines,UAD Powered Plug-Ins inject three-dimensional 'out-of-the-box' analogue sound to your mixes.

The Realtime Rack Ultimate Live

 (74 plug-ins available):
including -

• 1176 Classic Limiter Collection
• 1176LN Legacy Limiter
• 1176SE Legacy Limiter
• API 500 Series EQ Collection
• API Vision Channel Strip
• dbx 160 Compressor
• CS-1 Channel Strip
• Cambridge Equalizer
• Cooper Time Cube Delay/Modulation
• DreamVerb Reverb
• Empirical Labs Fatso JR/SR
• EMT 140 Plate Reverb
• EMT 250 Digital Reverb
• EP-34 Tape Echo
• Fairchild Tube Limiter Collection

• Harrison 32C Equalizer
• Helios 69 Equalizer
• Lexicon 224 Reverb
• Little Labs IBP
• Little Labs VOG
• Manley Massive Passive
• Moog Filter
• MXR Flanger Doubler
• Neve 1073
• Neve 1081
• Neve 31102
• Neve 33609
• Neve 88RS
• Oceanway Studios

• Precision Buss Compressor
• Precision De-Esser
• Precision Enhancer Hz
• Precision Enhancer kHz
• Precision Equalizer
• Precision K-Stereo
• Precision Limiter
• Precision Maximizer
• Pultec Passive EQ Collection
• Pultec EQP-1A Legacy Equalizer
• Pultec Pro Legacy Equalizer
• RealVerb Pro Reverb
• Roland CE-1
• Roland Dimension D
• Roland RE-201
• SPL Transient Designer
• SSL E Channel Strip
• SSL G Bus Compressor
• Studer A800 Tape Machine
• Teletronix LA-2A Limiter Collection
• Teletronix LA-2A Legacy Limiter
• Teletronix LA-3A Limiter
• Trident A-Range

Realtime Rack Core Live

 (14 plug-ins available): including -

• 1176LN Legacy Limiter
• 1176SE Legacy Limiter
• dbx 160 Compressor
• CS-1 Channel Strip
• Lexicon 224 Reverb
• Pultec EQP-1A Legacy Equalizer
• Pultec Pro Legacy Equalizer
• RealVerb Pro Reverb
• Studer A800 Tape Machine
• Teletronix LA-2A Legacy Limiter

Bundle contents are subject to change

Key Features

Hardware

• Durable 1U Rack enclosure
• 4 SHARC DSPs on-board
• Dual-redundant internal power supplies with failover detection
• Each Realtime Rack unit processes up to 16 channels of a MADI stream
  (add additional units for 32,48 or 64 channels)
• Runs a huge library of UAD Powered Plug-Ins & UAD Direct Developer Plug-Ins
• Dual-Thunderbolt host connectivity
• One set of MADI optical I/O (64 channels @ 48 kHz)
• Word Clock I/O (BNC) and Input termination
• Sample Rate support from 44.1kHz to 96kHz
• Clock Support for the following formats: Internal,MADI,Word Clock

Software

• Purpose-built Realtime Rack application for inserting UAD plug-Ins
• Networked integration with select Soundcraft Vi consoles -- allows full remote snapshot triggering and storing
• Create,store and recall channel strip presets
• Create,store and recall snapshots

Specifications
